PCB Stencil

Kategorie Produkt PCB Stencil, jesteśmy wyspecjalizowani producenci z Chin, PCB Stencil SMT Stencil dostawcy / fabryki, hurt wysokiej jakości produkty SMD Stencil R & D i produkcji, mamy doskonały serwis po sprzedaży i wsparcia technicznego. Czekamy na współpracę!

Wszystkie produkty

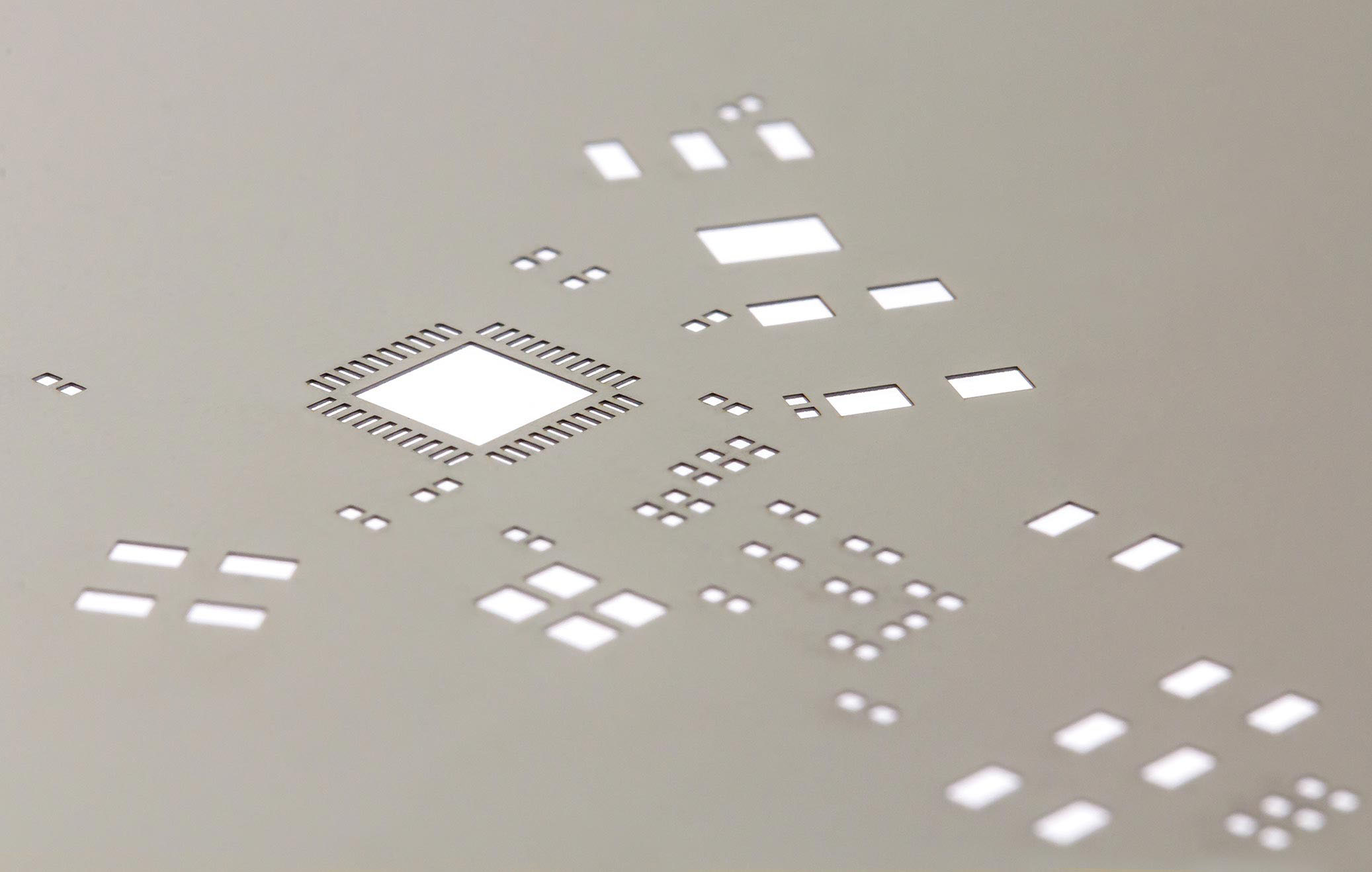

  • Prototypowe szablony SMT PCB

    Prototypowe szablony SMT PCB

    • Marka: JHY PCB

    • Packaging: Pakiet próżniowy

    Prototypowe szablony SMT PCB Prototypowe szablony SMT to laserowo wycinane szablony wykonane na zamówienie z plików Gerber lub CAD, które pasują do prototypowej płytki drukowanej. Te bezramowe szablony pasty lutowniczej są specjalnie zaprojektowane do ręcznego drukowania. Te prototypowe szablony SMT PCB zostały...

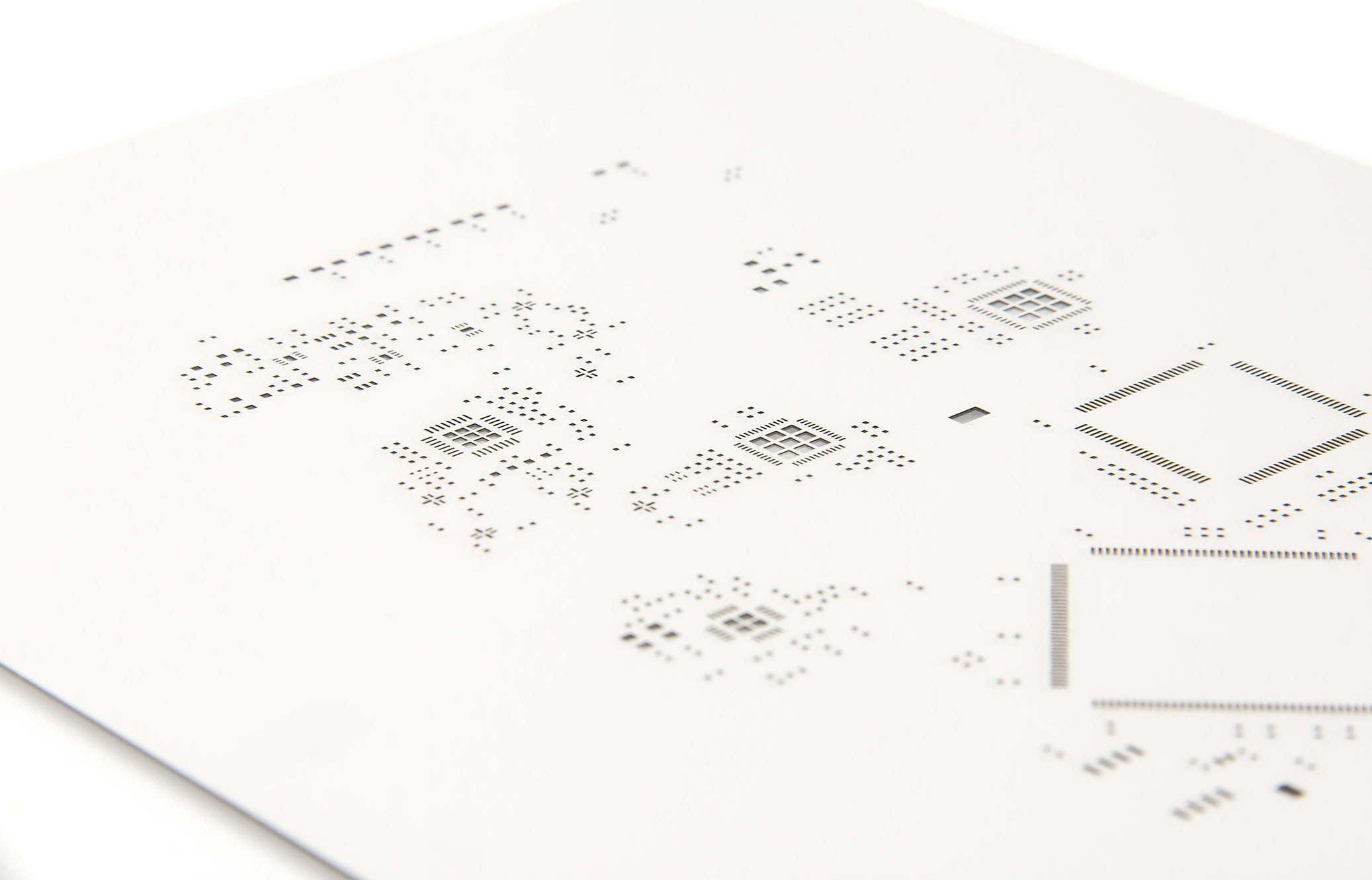

  • Laserowo cięte szablony SMT

    Laserowo cięte szablony SMT

    • Marka: JHY PCB

    • Packaging: Pakiet próżniowy

    Laserowo cięte szablony SMT Szablony, zwane również szablonami SMT, odgrywają kluczową rolę w przekazywaniu dokładnej ilości pasty lutowniczej, aby skorygować pozycje na gołych płytkach drukowanych gotowych do montażu. Innymi słowy, szablony mogą szybko i skutecznie zapewniać najdokładniejszą ilość pasty lutowniczej i...

  • Wzorniki SMT z elektroformowanym PCB

    Wzorniki SMT z elektroformowanym PCB

    • Marka: JHY PCB

    • Packaging: Pakiet próżniowy

    Wzmocnione matryce SMT Elektroformowane szablony SMT to niklowe folie elektro formowane na stałe w ramie szablonu za pomocą obramowania z siatki, aby szczelnie rozciągnąć napiętą folię szablonu w ramie. Wzory z elektroformowaniem oferują najlepszą dostępną charakterystykę uwalniania pasty i są często stosowane w...

  • Szablon ze stali nierdzewnej SMT

    Szablon ze stali nierdzewnej SMT

    • Marka: JHY PCB

    • Packaging: Pakiet próżniowy

    Szablon ze stali nierdzewnej SMT Szablony ze stali nierdzewnej są laserowo wycinanymi szablonami SMT wykonanymi na zamówienie dla własnych prototypowych płytek PCB przy użyciu plików Gerber lub CAD. Nasze szablony ze stali nierdzewnej zostały specjalnie zaprojektowane na rynek producenta, więc każdy może mieć dostęp...

  • Bezramowe szablony SMT PCB

    Bezramowe szablony SMT PCB

    • Marka: JHY PCB

    • Packaging: Pakiet próżniowy

    Bezramowe szablony SMT PCB Bezramowe szablony SMT, zwane również foliami, to laserowo wycinane szablony pasty lutowniczej przeznaczone do pracy z systemami napinania szablonów znanymi jako ramy szablonowe wielokrotnego użytku. Ten typ szablonu nie musi być na stałe przyklejony do ramy. Szablony bezramowe są znacznie...

  • Matrycowane szablony PCB SMT

    Matrycowane szablony PCB SMT

    • Marka: JHY PCB

    • Packaging: Pakiet próżniowy

    Co to jest szablon do PCB? Jedynym celem szablonu SMT jest przeniesienie pasty lutowniczej na gołą płytkę drukowaną. Folia ze stali nierdzewnej jest cięta laserowo, tworząc otwór dla każdego urządzenia do montażu powierzchniowego na płycie. Po prawidłowym ułożeniu szablonu na górze płyty, nakłada się pastę lutowniczą...

Chiny PCB Stencil Dostawcy

PCB SMT Stencil,the unique goal  is to move solder paste to the bare printed circuit board.


PCB Stencil, SMT Stencil, SMD Stencil, Laser Stencil, What is it?

Apart from all types of Printed Circuit Boards (PCBs) such as Prototype PCB, Aluminum PCB, HDI PCB, Flexible PCB, Rigid Flex PCB, Thick copper PCB, High Tg PCB, JHYPCB also manufactures solder paste stencils to meet Surface Mount Technology (SMT) requirements.

PCB Stencils, also called SMT stencils, SMD stencil, play a key role in transferring accurate amount of solder paste to correct positions on bare circuit boards ready for assembly. In other words, stencils can fast and efficiently ensure the most accurate solder paste amount and optimal electrical connection. With solder stencils, it is possible to use metal squeegee blades to apply solder paste easily over the openings on PCBs and make stencil to be well aligned with the surface of the advanced circuit board.

All of our SMT Stencils stencils are 100% laser-cut type 304 full-hard stainless steel, ensuring the finest quality finish on the market today. We use a .001" laser beam with 98% overlap creating an extremely smooth hole that provides the best paste release. Most stencil fabricators use a .003" laser leaving mouse bites on the aperture edge. You can choose a PCB prototype stencil, a frameless foil stencil, or a rigid permanently mounted stencil. Both the frameless and framed stencils come in various sizes to accommodate your printer and stencil requirements.

PCB Stencil produced by JHY PCB




PCB Stencil Types Available:


1. Laser-cut stencils


The openings are lasered on 100% stainless steel. Generally speaking, this kind of stencil can be produced with high quality and a high degree of precision within a short time.


  • Advantages: high accuracy; barely influenced by objective elements; trapezoid opening beneficial for demoulding; suitable for accurate cutting; reasonable price;


  • Disadvantages: relative low manufacturing speed.

Laser-cut SMT Stencil

2. Chemical-etch stencil


The openings are etched into the metal using acid. Usually this kind of stencil offers better protection on material temper and hardness.


  • Advantages: one-time formation; relatively high manufacturing speed; low cost;


  • Disadvantages: tending to form sand clock shape or large openings; numerous manufacturing stages and accumulating errors; unsuitable for fine pitch stencils; bad for environmental protection.

3. Prototype PCB Stencil (Low-volume manual printing. Ideal for prototypes)

When prototyping dictates fast action with minimal cost, our prototype stencils are the best solution. Prototype Stencils gives you a quality stencil and framework so you can handle assembly from the convenience of your own desk.

Prototype SMT Stencil Features:


  • Eliminate the registration difficulty associated in hand printing with a flat piece of metal
  • Eliminate printer set up for short run prototypes
  • Allow quick alignment for repeatability
  • Save money over full size stencils designed for automated printers<
  • Squeegee included
Prototype SMT Stencil Specs:
Technology 100% laser cut
Material Used Stainless Steel
Stencil Thickness 0.06 ~ 0.3 mm
Minimum Cut Width 0.05 mm
Maximum Size 736 X736 mm
Aperture Tolerance within 0.007mm
Allow for Fiducial Data Yes
Delivery 1 ~2 Day

Prototype PCB Stencil (Low-volume manual printing. Ideal for prototypes)


4. NEW Prototype PCB Stencil Kit (with leaded or lead/free solderpaste)


Includes Prototype Stencil, one board holder, leaded or lead-free solder paste (must specify), temperature marker, squeegee, ESK-safe gloves and alcohol wipe.


5. NEW Pick and Place Tool


Handy and convenient for low quantity prototype assembly using the Prototype Stencils.  Re-usable, includes vacuum bulb and vacuum clips with diameters of 3/8", 1/4", and 1/8".


6. Framed SMT Stencils (Also called "Glue-in" or Mounted Stencils)


Framed stencils are laser-cut stencils designed for high volume screen-printing. With a framed stencil, your stencil is securely mounted to either a cast or extruded aluminum stencil frame a stencil frame using a mesh border, allowing for complete control.


Framed SMT Stencil Features:


  • Unique Process for smooth aperture walls
  • Very clean laser-cut apertures
  • Excellent print performance
  • Excellent for high-volume stencil printing on printed circuit boards
  • Unique process creates permanent non-removable non-fading fiducial
  • All framed SMT stencils are double bonded to extreme wear
  • 24-hour turnaround standard
Framed SMT Stencil Specs:
Technology 100% laser cut
Material Used Stainless Steel
Frame Types Cast, Space Saver
Stencil Thickness 0.06 ~ 0.3 mm
Minimum Cut Width 0.05 mm
Maximum Size 736 X736 mm
Aperture Tolerance within 0.007mm
Allow for Fiducial Data Yes
Allow for Panelized Data Yes
Delivery 1 ~2 Day

Framed PCB Stencil Specification


Framed PCB Stencil Area

Maximum Squeegee Area

300mm*400mm (11.81inch*15.75inch)

120mm*220mm (4.72inch*8.66inch)

370mm*470mm (14.57inch*18.5inch)

200mm*300mm (7.87inch*11.81inch)

400mm*600mm (15.75inch*23.62inch)

220mm*400mm (8.66inch*15.75inch)

400mm*700mm (15.75inch*27.56inch)

220mm*500mm (8.66inch*19.69inch)

400mm*800mm (15.75inch*31.5inch)

220mm*600mm (8.66inch*23.62inch)

400mm*900mm (15.75inch*35.43inch)

220mm*700mm (8.66inch*27.56inch)

400mm*1000mm (15.75inch*39.37inch)

220mm*800mm (8.66inch*31.5inch)

400mm*1200mm (15.75inch*47.24inch)

220mm*1000mm (8.66inch*39.37inch)

400mm*1400mm (15.75inch*55.12inch)

220mm*1200mm (8.66inch*47.24inch)

420mm*520mm (16.54inch*20.47inch)

240mm*340mm (9.45inch*13.39inch)

450mm*550mm (17.72inch*21.65inch)

270mm*370mm (10.63inch*14.57inch)

500mm*800mm (19.69inch*31.5inch)

320mm*600mm (12.6inch*23.62inch)

500mm*1200mm (19.69inch*47.24inch)

320mm*1000mm (12.6inch*39.37inch)

550mm*650mm (21.65inch*25.59inch)

340mm*440mm (13.39inch*17.32inch)

584mm*584mm  (23inch*23inch)

380mm*380mm (15inch*15inch)

736mm*736mm (29inch*29inch)

480mm*480mm (19inch*19inch)


Framed SMT Stencil



7. Frameless SMT Stencil - Foil/Plate Only (for universal frames)


Foil or Plate Only stencils are designed to work within interchangeable plate or "universal" systems. Also referred to as "reusable", these stencils do not need to be permanently glued into a frame.


Frameless SMT Stencils also referred to as foils are laser cut solder paste stencils designed to work with stencil tensioning systems known as reusable stencil frames. This type of stencil does not need to be permanently glued in a frame. Frameless stencils are significantly less expensive than framed stencils and provide money-saving storage while still delivering superior quality and performance.

Frameless SMT Stencil Features:


  • Reduced storage space requirements
  • Significantly less expensive than framed stencils
  • Excellent for prototype printed circuit board assembly or short runs
  • Smooth aperture walls, can be used for 16 Mil pitch and below and for Micro BGA's
  • 24-hour turnaround standard

Frameless SMT Stencil Specs:
Technology 100% laser cut
Material Used Stainless Steel
Stencil Thickness 0.06 ~ 0.3 mm
Minimum Cut Width 0.05 mm
Maximum Size 280 X 380 mm
Allow for Fiducial Data Yes
Allow for Panelized Data Yes
Delivery 1 ~2 Day

Frameless SMT Stencil


8. Frameless SMT Stencil - Foil/Plate Only (for hand printing)


For times when you need precise control for smaller production runs, our Foil or Plate Only stencils are ideal. These frameless stencils allow you to hand print with precision just the amount you need and can be stored conveniently.


9. Electroformed SMT Stencils


Electroformed SMT stencils are nickel-based, electroform foils permanently mounted in a stencil frame using a mesh border to tightly stretch the stencil foil taut in the frame. Electroformed stencils offer the best paste release characteristics available and are frequently used for fine pitch (20 mil to 12 mil pitch) SMT applications on printed circuit boards. They are also used for µBGA's, Flip Chip, and Wafer Bumping (12 mil to 6 mil pitch).

Electroformed SMT Stencil Features:


  • The smooth trapezoidal sidewalls of an electroformed stencil allow for better paste release
  • Nickel has a lower coefficient of friction compared to stainless steel
  • Electroform foils are harder than full hard stainless steel of comparable thickness, providing for longer stencil life
  • 24-hour turnaround standard

Electroformed SMT Stencil Specs:
Technology Electroforming
Material Used Nickel
Suitable Applications All Component Pitches
Aperture Tolerance within 0.007mm
Stencil Thickness 0.06 ~ 0.3 mm
0.06mm.0.08mm.0.1mm.0.12mm.0.13mm.0.15mm.0.18mm.0.2mm.0.3mm
Positional Accuracy ± 0.008mm
Delivery 1 ~2 Day



What's the difference between a framed stencil and a frameless stencil?


A framed PCB stencil will have a 0.5" to 1.5" thick metal frame around it, similar to a picture frame. Framed stencils are often used by contract manufacturers, assembly and board houses, and large scale production facilities and are commonly placed in a manual or automated stencil printing machine. Frameless stencils are a thin sheet of material cut with a small border around your design. For example pictures on these products, please visit our Gallery.


What's the difference between Polyimide and Stainless Steel?


All stencils are made with high quality Polyimide and Stainless Steel. We use only the industry leading Stainless Steel, designed specifically for stencils. These materials are ideal for prototype or multilayer PCB.

Stainless Steel: 0.0007" Laser spot size, 0.001" minimum aperature size.
Polyimide Film: 0.003" Laser spot size, 0.005" minimum aperature size.

Polyimide has a lower precision rate due to the way it is processed and its ability to withstand heat during the cutting process. Minor variances will occur when the material reacts to the laser. Paste release is great, but this material should be limited to a small number of uses and with components 0402 or bigger.

The minimum aperature size for Polyimide is 0.005" vs 0.001" for Stainless Steel. Polyimide also has a natural curl in the material caused by the way the film is manufacturered, this is outside of our control. Stainless Steel provides the ultimate in precision and quality, with a 0.0007" spot size, and exceptional paste release with a truly flat surface. If you want the absolute best reflow experience, there is no comparison, Stainless Steel is the superior material.


Analysis and Treatment of Common Problems in PCB SMT stencil


  • Insufficient solder paste
Insufficient solder paste may cause poor bonds and contact between components and the board. The common causes of insufficient solder paste are poor gasketing, clogged stencil apertures, insufficient solder paste bead size, paste/stencil being used beyond recommended life span, stencil not wiped clean, or low squeegee pressure.

  • Smudging/bridging
The main causes of smudging/bridging are excessive squeegee pressure, inadequate stencil wiping, poor contact between the board and stencil, high temperature or humidity, or low solder paste viscosity.

  • Misalignment print
A typical misalignment print is usually caused by the vision system not spotting fiducials, PWB or stencil stretch, poor contact between the board and the stencil, or weak board support.

  • Bow and twist
A PCB board not fixed properly during solder paste printing gives poor results and increases soldering related issues. Normally, solder paste printing equipment can handle warpage of 1.0 to 3.0 mm but beyond this limit needs some special jigs or fixtures to hold the PCB. It may be difficult to tackle thick and small boards compared to thin and bigger size boards.


How to Determine Stencil Size?


Stencil size is composed by two parts: internal size and overall size. Internal size is the size compatible with that of PCB ready to be assembled while overall size refers to the size compatible with printer parameter limit. As long as both sizes are accurately designed, stencil will be able to make full use of its functions.

How to Determine Stencil Size

Internal size of stencil can be figured out conforming to the following rule:
  • Width of Framed Stencil = width of PCB + 100mm while its Length = length of PCB + 100mm
  • Width of Frameless stencil = width of PCB + 200mm while its Length = length of PCB + 200mm

For example, if one circuit board size is 50*50mm, then the size of its framed stencil should be around 150*150mm and the size of its frameless stencil should be around 250*250 mm.

It's easy to remember and operate so it worked for manual solder paste printing in SMT assembly prior to the advent of automatic printer. It can be said that different PCB sizes lead to generations of different internal sizes of stencil.

When it comes to automatic solder paste printer, however, it's relatively solid. Overall size of stencil has to be determined by parameter limit of the equipment, that is, printer, because stencil has to work within the range of printer with a frame. Different printers feature different parameter regulations. As far as PCBCart is concerned, the stencil size compatible with our printer can be either 650mm*650mm or 736mm*736mm.

PCB designers have to focus on internal size of stencil, they don't need to care about its overall size since it is generally determined by the parameters of printer in your contract assembler workshop.



How to Use PCB SMT Stencils?
